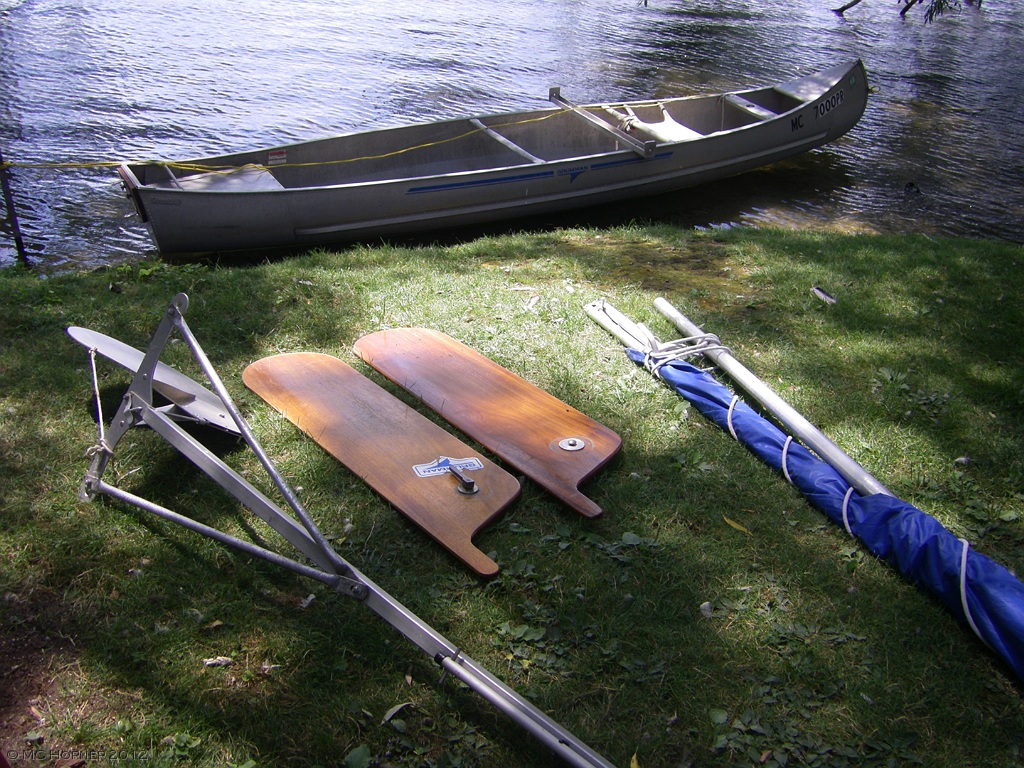

A Grumman Square Stern Sailing Canoe. From left: rudder, leeboards, sail and mast.

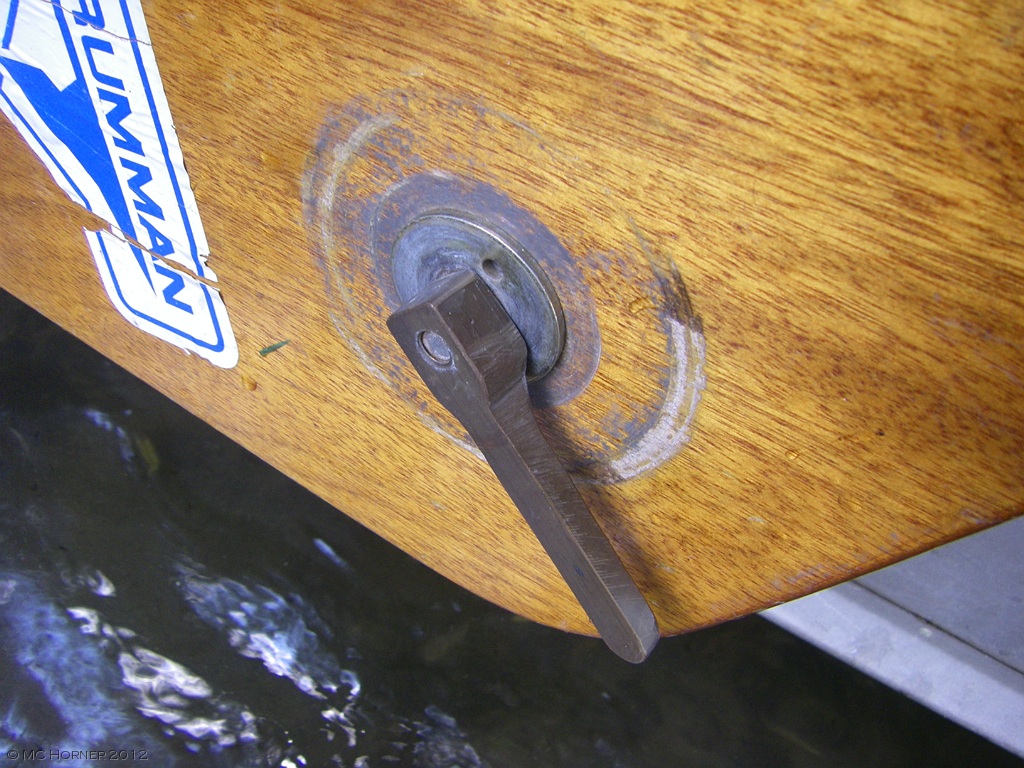

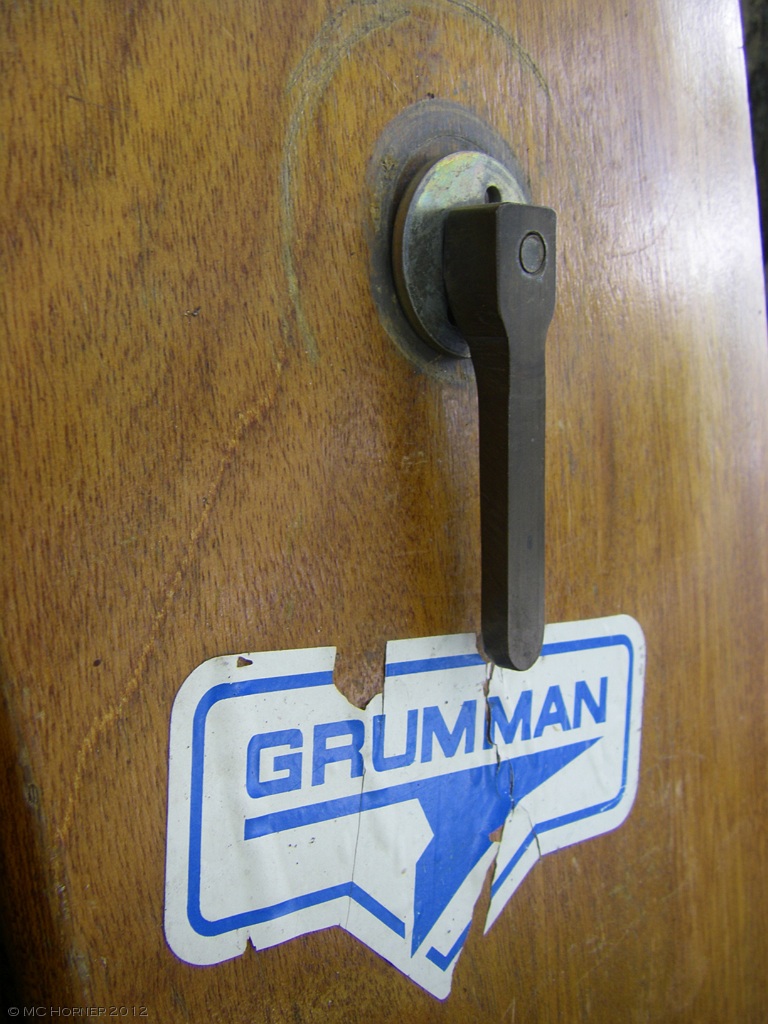

Leeboard clamp handle.

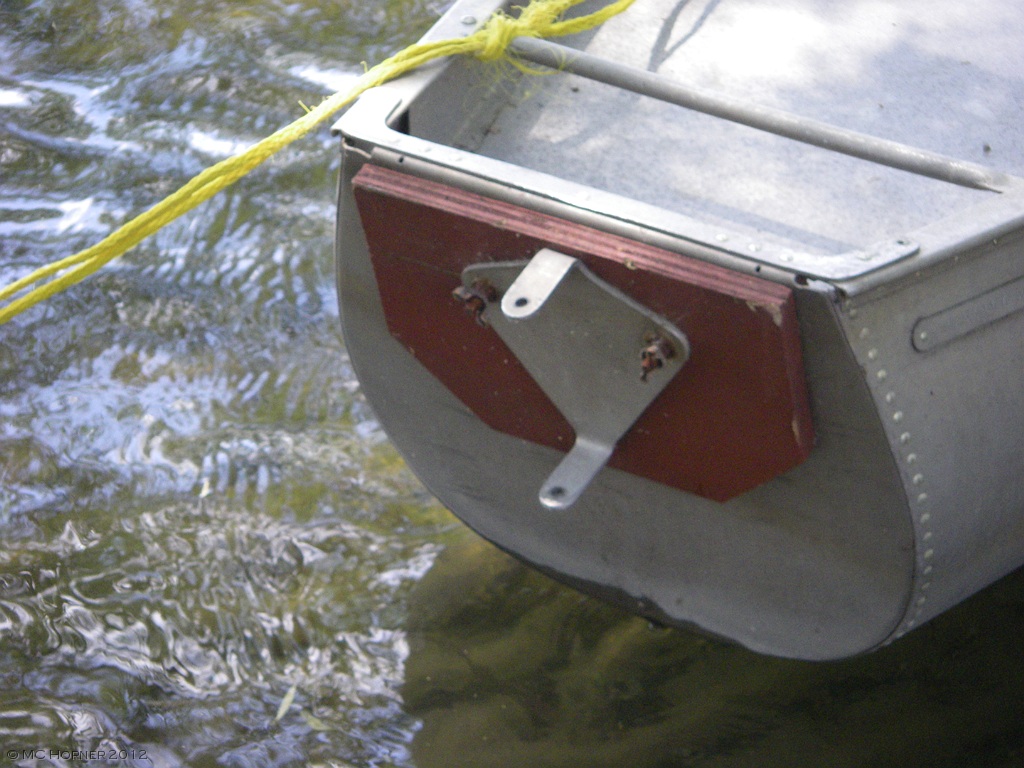

Stern view. rated for a 5 HP boat motor!

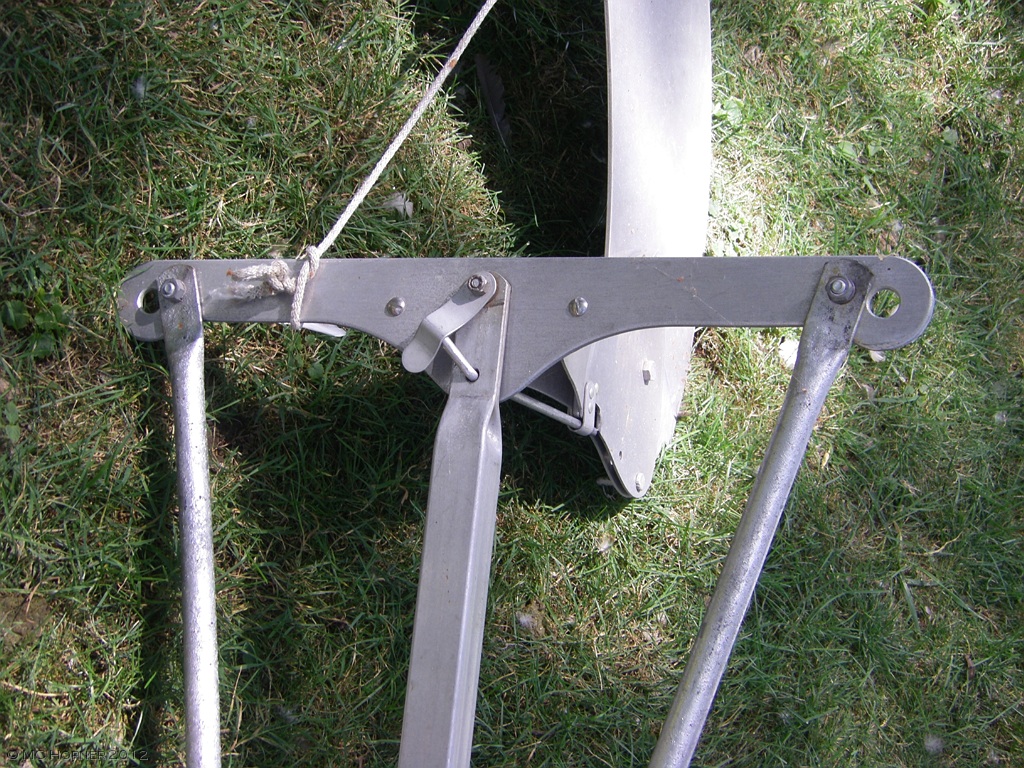

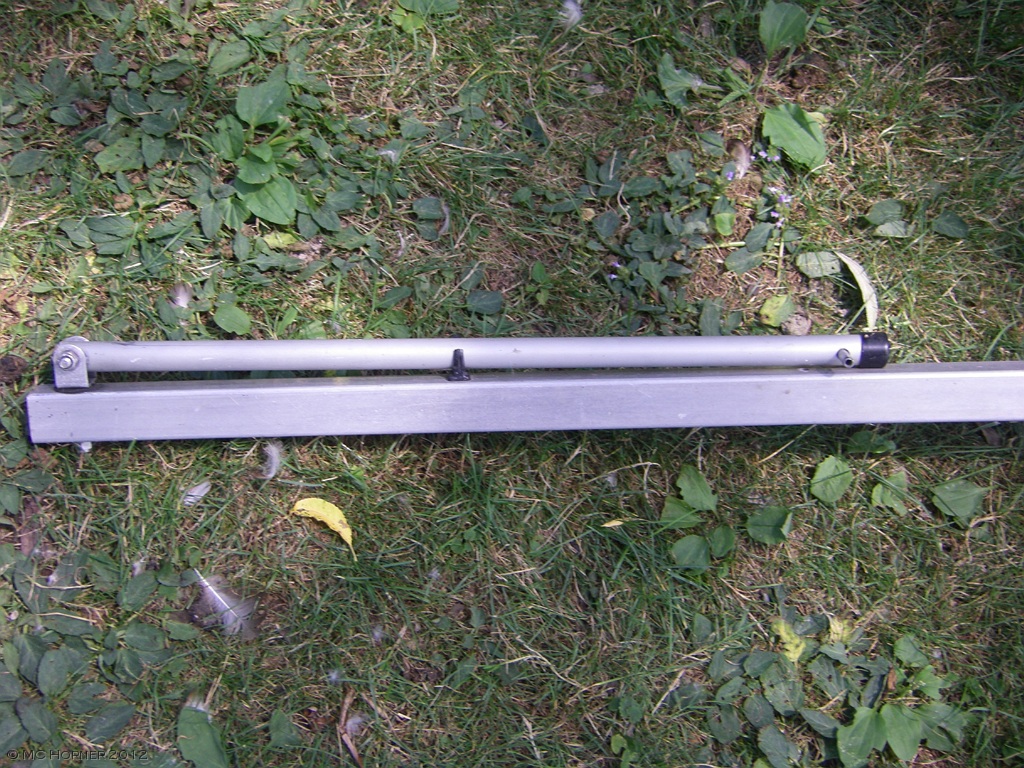

Modified rudder- added the swivel.
Round bars are also home made add-ons.

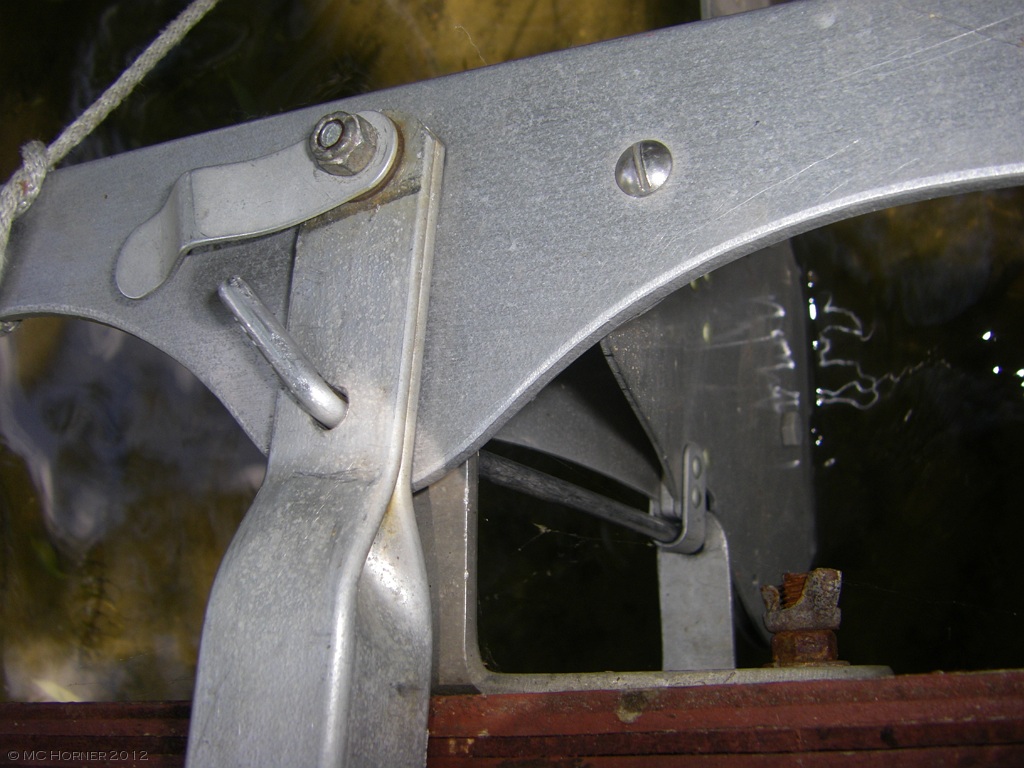

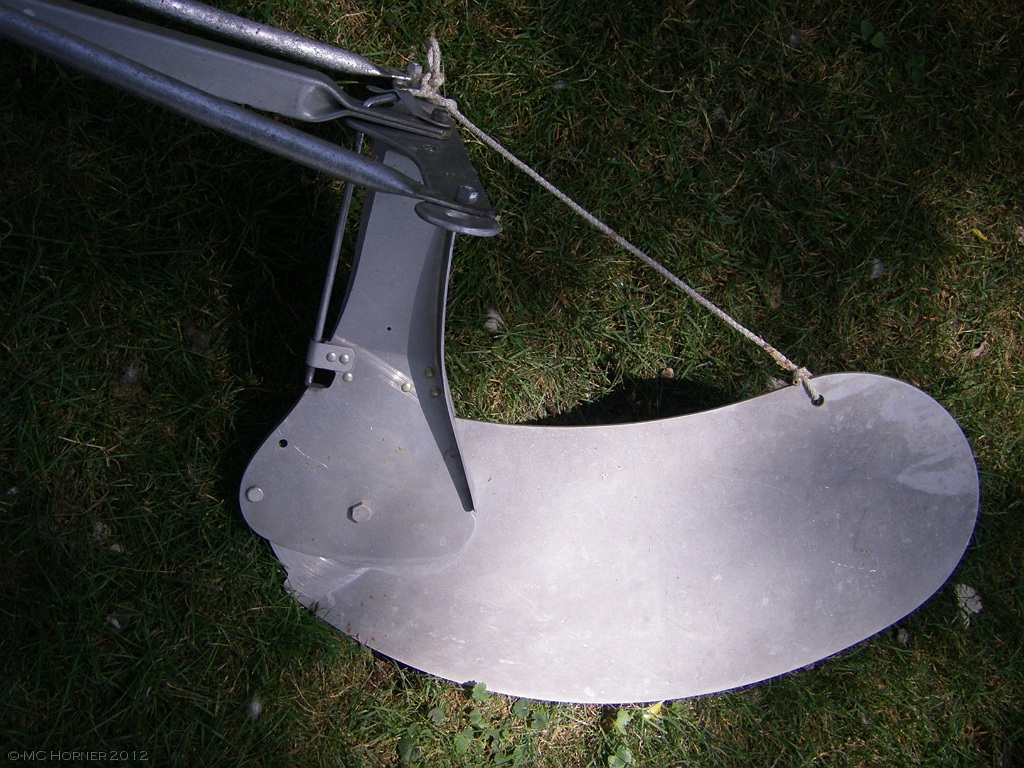

Business end of the rudder.

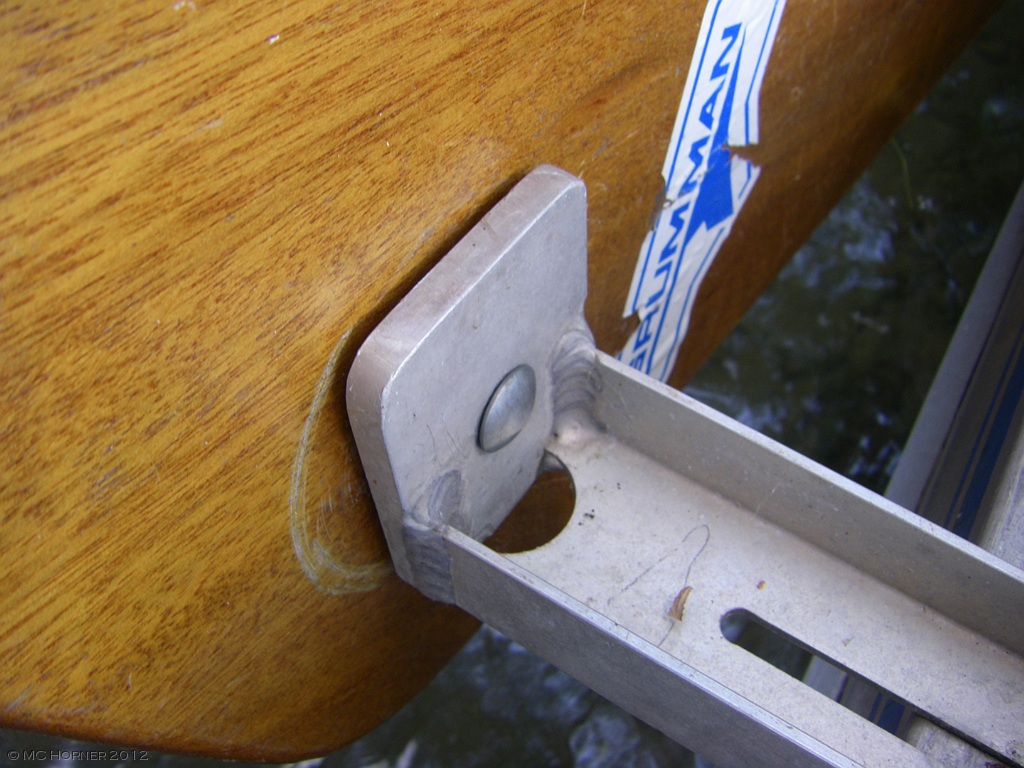

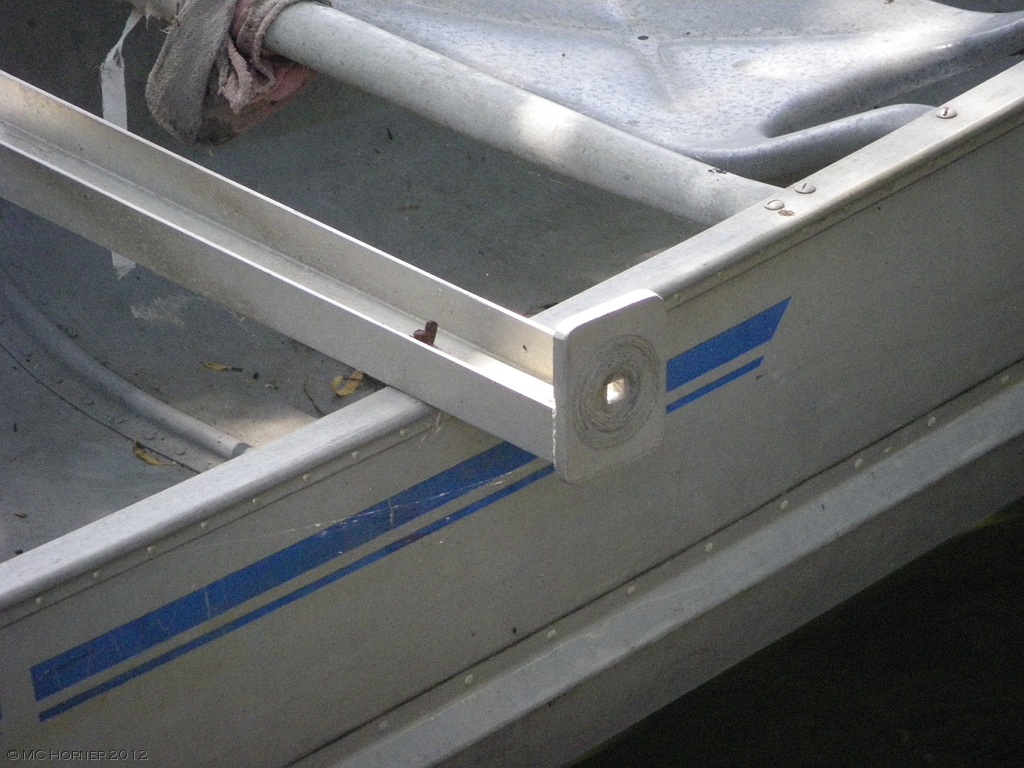

Leeboard attachment points. Square hole for carriage bolts.
Bolt, bracket,washer, lee board, washer, clamp handle. Do this in shallow water!

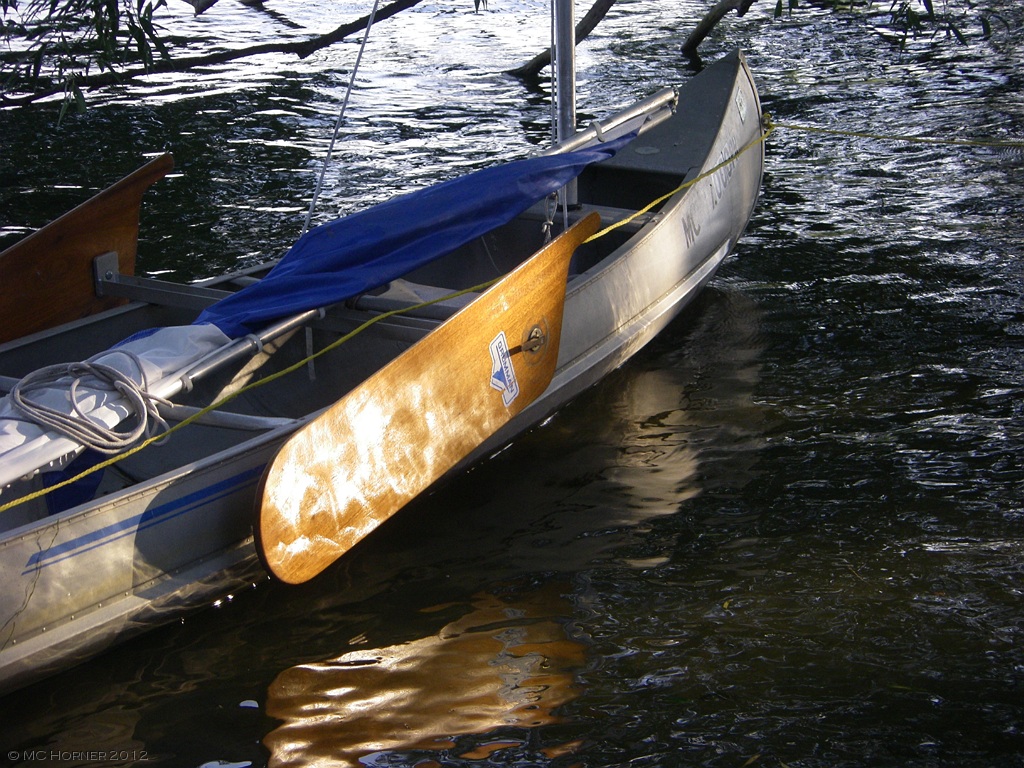

Clamp handle, leeboard in raised and locked position.
Mount the rudder and strap on your life jacket!

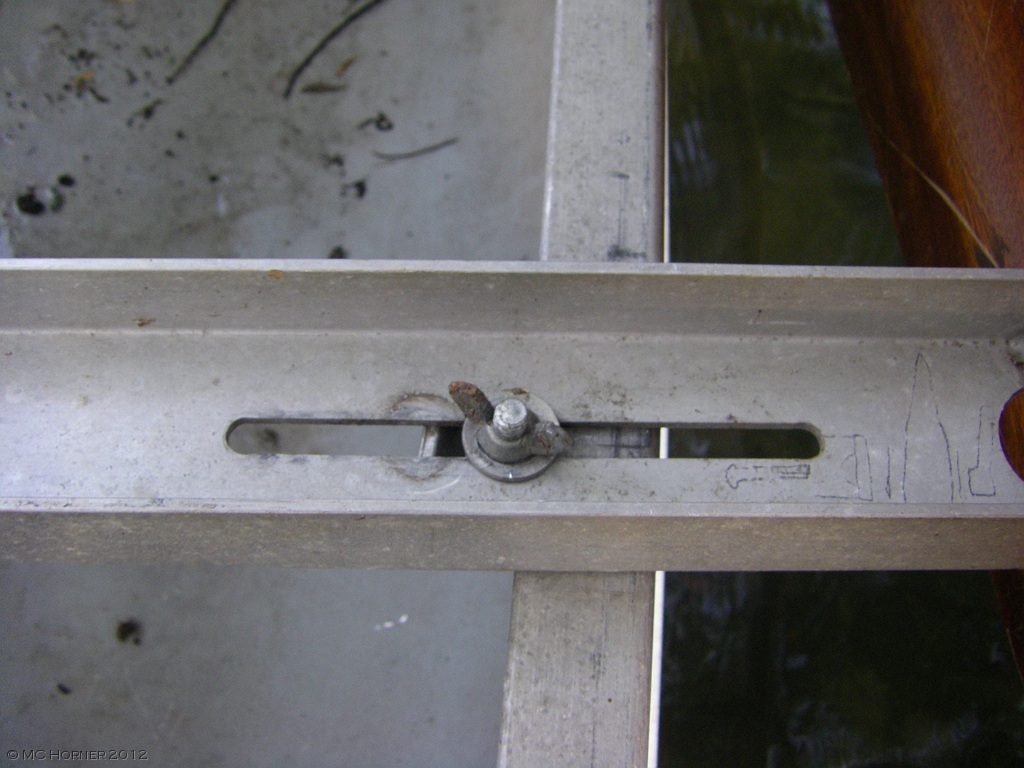

How the lee board bracket clamps to the gunwale. With handy diagram.

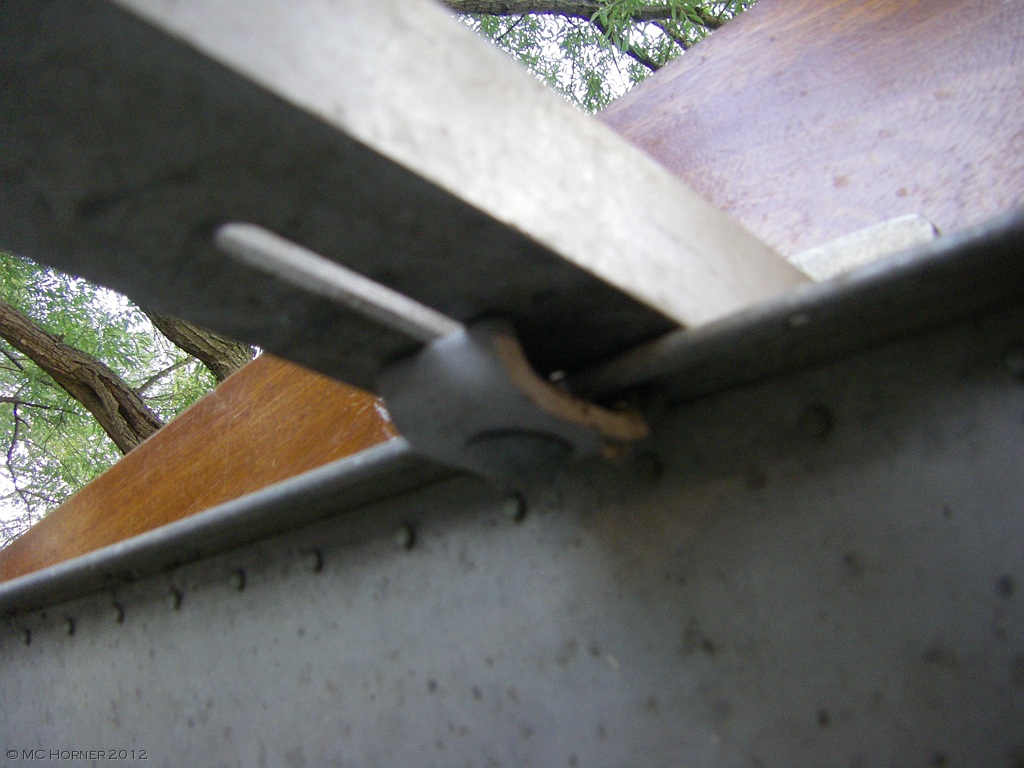

Gunwale clamp, fuzzy bottom view.
Sail fold point.

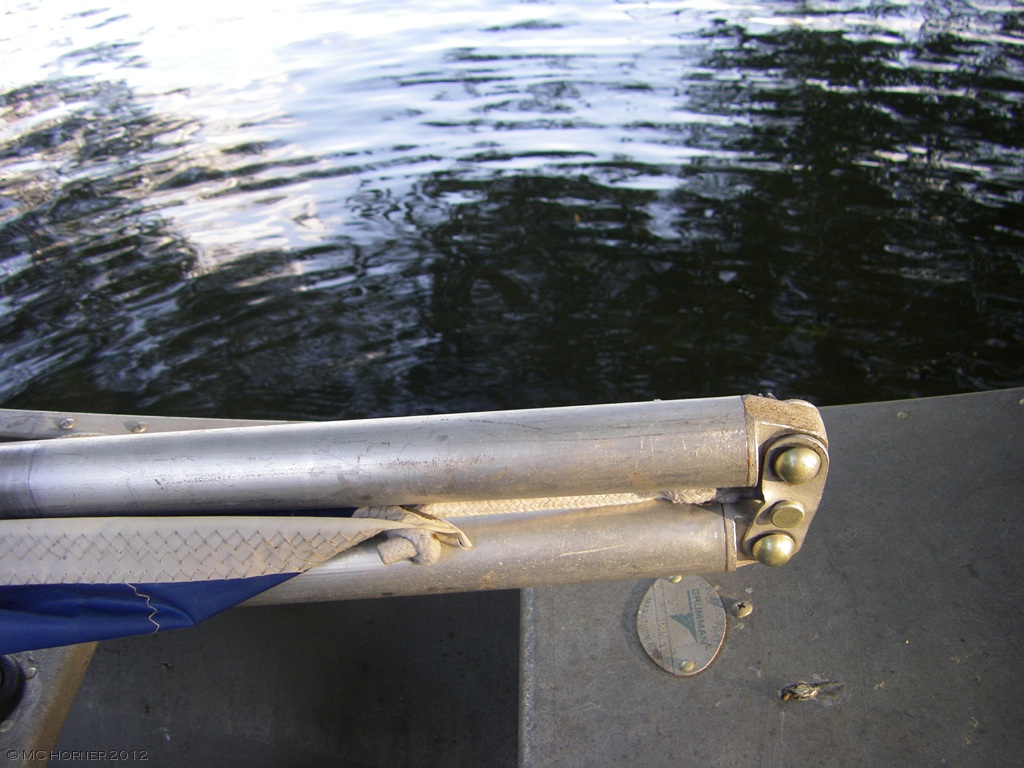

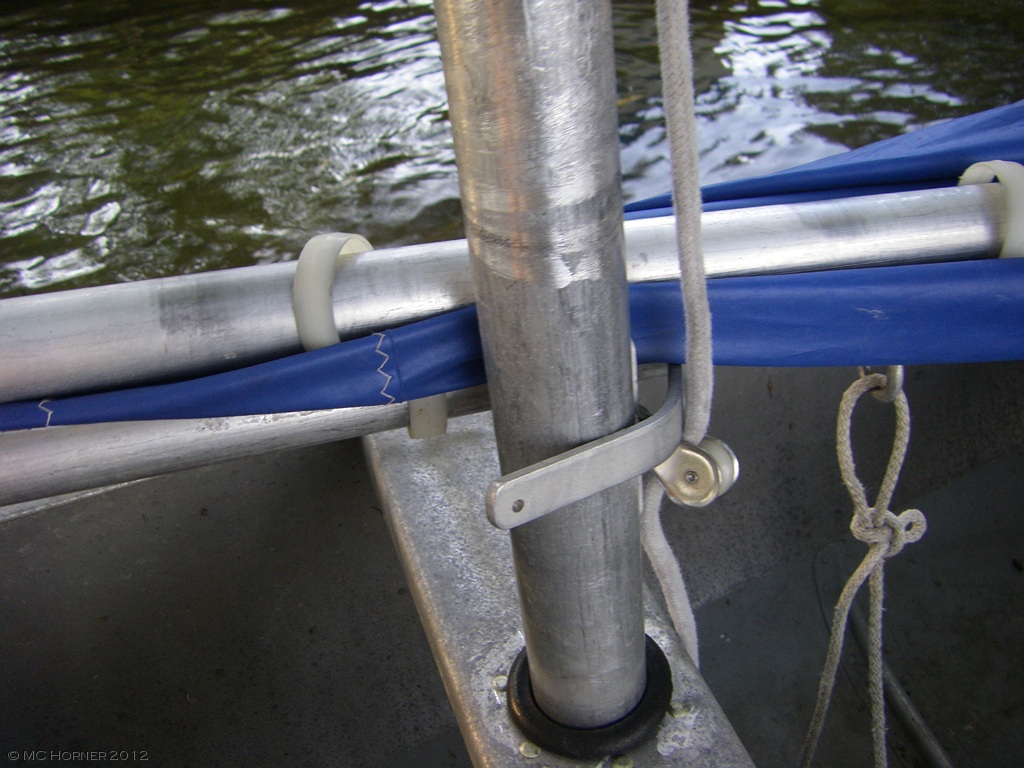

Boom hooked to mast.

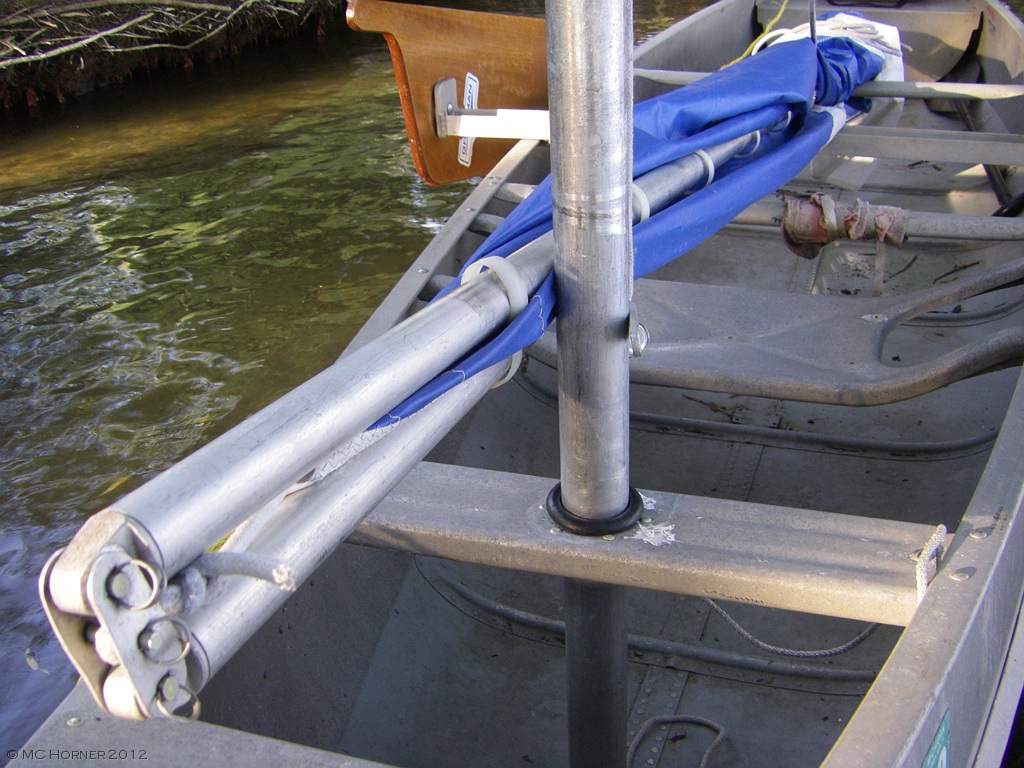

Ready to hoist.

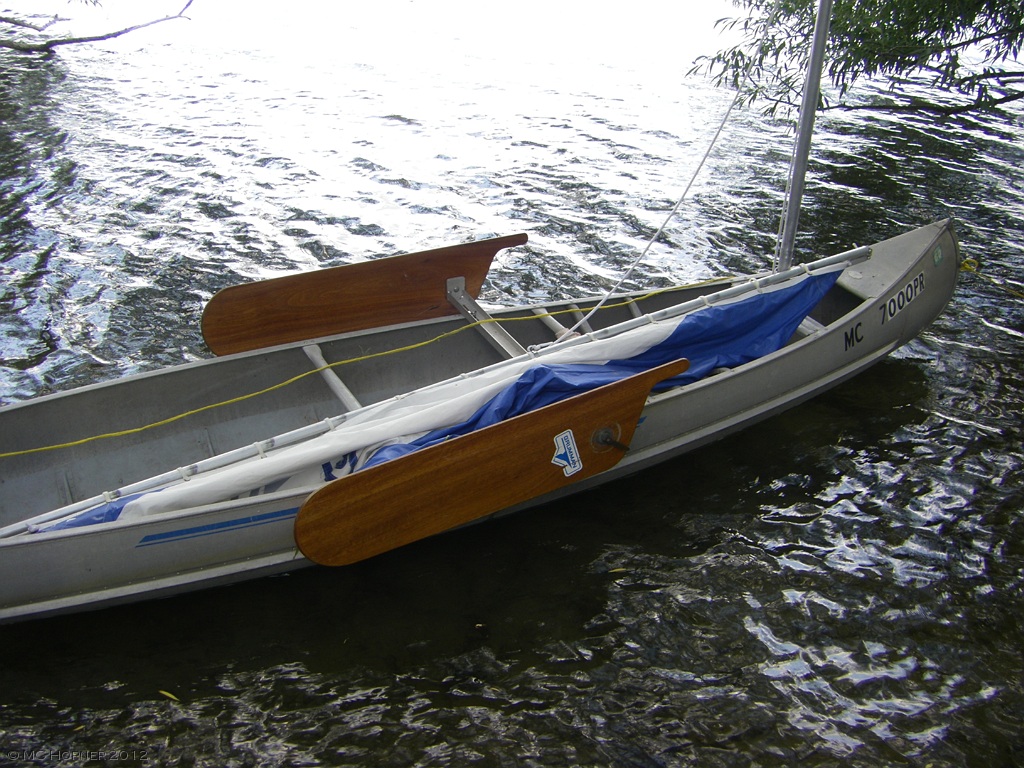

Raise the sail, push or paddle to deeper water, drop the leeboards, and go

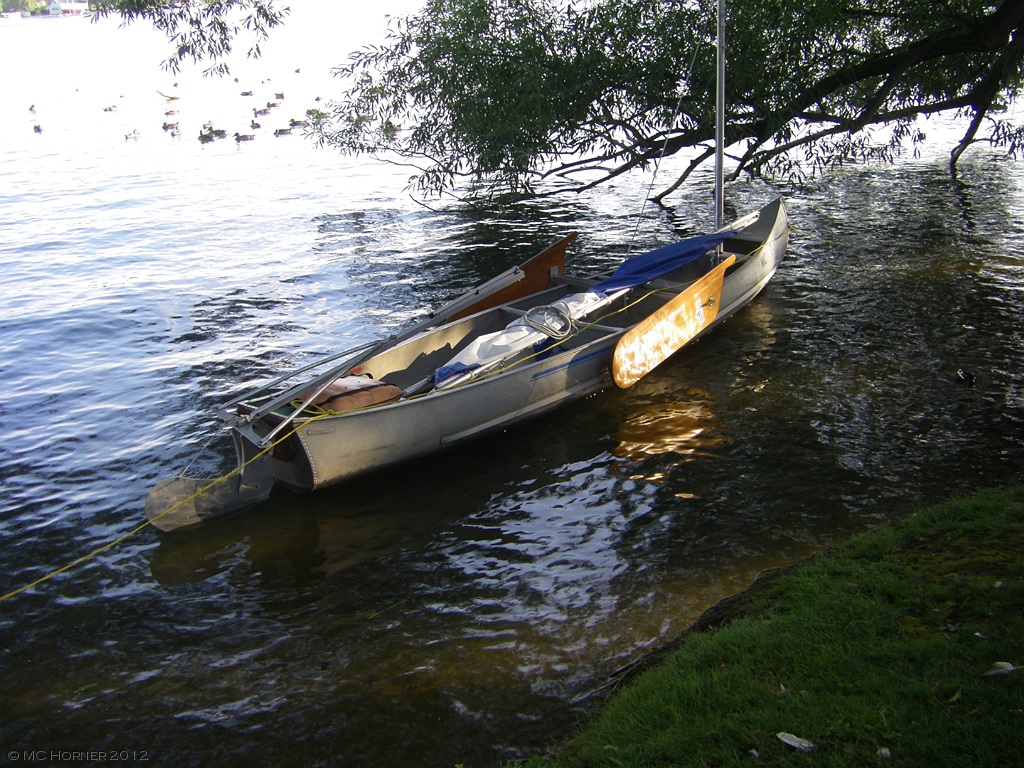

After the sail. No pics from the actual sail, sort of had my hands full.
